“X’tal Head: Face-to-Face Communication by Robot” by Inami

  • ©Masahiko Inami

  • ©Masahiko Inami


Entry Number: 30


    X'tal Head: Face-to-Face Communication by Robot

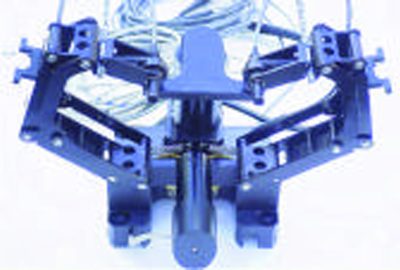

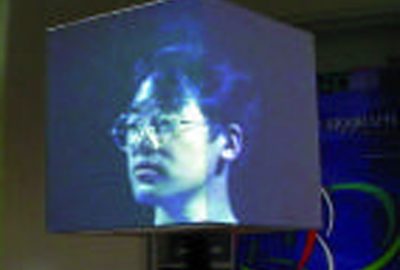

    X’tal Vision (Crystal Vision) is a projection-based augmented-reality system composed of a projector with a small iris and a retroreflective screen. It allows users to observe stereoscopic images with almost correct occlusion relationships between the virtual and the real environment. The small iris mounted on the projector has an extensive depth of field, which enables the free arrangement and free shape of the screen. X’tal Vision was demonstrated at SIGGRAPH 98 and SIGGRAPH 99. By extending the technology to telecommunication, X’tal Head allows users to observe a stereoscopic head image of a remote person. A head-tracked camera with a constant-orientation link captures the head image, and the system displays a novel, realistic “talking head.”

Additional Images:

©Masahiko Inami ©Masahiko Inami ©Masahiko Inami
