“Hapbeat : Single DOF Wide Range Wearable Haptic Display” by Yamazaki, Mitake, Oda, Wu, Hasegawa, et al. …
Conference:
- SIGGRAPH 2017
-
More from SIGGRAPH 2017:
Type(s):
Entry Number: 12
Title:
- Hapbeat : Single DOF Wide Range Wearable Haptic Display
Presenter(s):
Description:

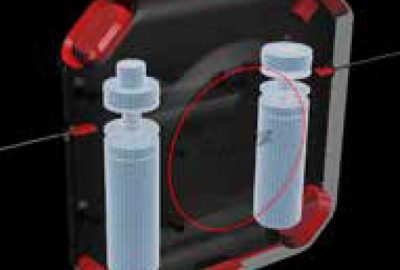

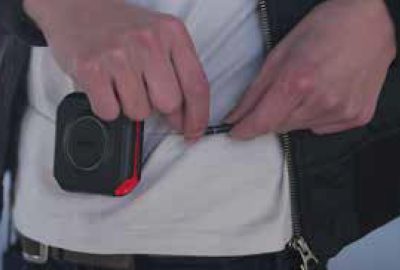

Hapbeat is a single DOF haptic display, which enhances virtual reality experiences and music listening. It consists of two coreless motors and stiff string, and feedbacks compression forces of 0 to 600 Hz, i.e. from DC forces to high fidelity acoustic vibrations. The motors generate vibrations of up to 600Hz and the string transmits them. Comparing to existing devices, Hapbeat can generate powerful low frequency vibrations and transmit them to wide range of the user’s body in spite of its compact body. The user can feel air pressures of powerful low frequency sounds, high fidelity vibrations of acoustic instruments and hitting of strong smashes.
References:
Akira Komatsu. 2002. USPatent 6369312 B1. (Apr 9 2002).
Woojer. 2016. http://get.woojer.com/. (feb 8 2016).
Yusuke Yamazaki, Hironori Mitake, and Shoichi Hasegawa. 2016. Tension-Based Wearable Vibroacoustic Device for Music Appreciation. In International Conference on Human Haptic Sensing and Touch Enabled Computer Applications. Springer, 273–283.
Vibol Yem, Ryuta Okazaki, and Hiroyuki Kajimoto. 2016. Vibrotactile and pseudo force presentation using motor rotational acceleration. In 2016 IEEE Haptics Symposium (HAPTICS). IEEE, 47–51.
Keyword(s):
- Vibroacoustic device
- Music listening
- virtual reality
- wearable device
- Haptic
Additional Images:
![©Yusuke Yamazaki, Hironori Mitake, Ryuto Oda, Hsueh-Han Wu, Shoichi Hasegawa, Minatsu Takekoshi, Yuji Tsukamoto, and Tetsuaki Baba](https://history.siggraph.org/wp-content/uploads/2022/04/2017-ETech-12-Yamazaki_Hapbeat-02.jpg)
![©Yusuke Yamazaki, Hironori Mitake, Ryuto Oda, Hsueh-Han Wu, Shoichi Hasegawa, Minatsu Takekoshi, Yuji Tsukamoto, and Tetsuaki Baba](https://history.siggraph.org/wp-content/uploads/2022/04/2017-ETech-12-Yamazaki_Hapbeat-07.jpg)
![©Yusuke Yamazaki, Hironori Mitake, Ryuto Oda, Hsueh-Han Wu, Shoichi Hasegawa, Minatsu Takekoshi, Yuji Tsukamoto, and Tetsuaki Baba](https://history.siggraph.org/wp-content/uploads/2022/04/2017-ETech-12-Yamazaki_Hapbeat-06.jpg)
![©Yusuke Yamazaki, Hironori Mitake, Ryuto Oda, Hsueh-Han Wu, Shoichi Hasegawa, Minatsu Takekoshi, Yuji Tsukamoto, and Tetsuaki Baba](https://history.siggraph.org/wp-content/uploads/2022/04/2017-ETech-12-Yamazaki_Hapbeat-05.jpg)
![©Yusuke Yamazaki, Hironori Mitake, Ryuto Oda, Hsueh-Han Wu, Shoichi Hasegawa, Minatsu Takekoshi, Yuji Tsukamoto, and Tetsuaki Baba](https://history.siggraph.org/wp-content/uploads/2022/04/2017-ETech-12-Yamazaki_Hapbeat-04.jpg)
![©Yusuke Yamazaki, Hironori Mitake, Ryuto Oda, Hsueh-Han Wu, Shoichi Hasegawa, Minatsu Takekoshi, Yuji Tsukamoto, and Tetsuaki Baba](https://history.siggraph.org/wp-content/uploads/2022/04/2017-ETech-12-Yamazaki_Hapbeat-03.jpg)
Acknowledgements:
This work was supported by JSPS KAKENHI Grant Number JP17H01774.
