“HangerOVER : HMD-Embedded Haptics Display With Hanger Reflex” by Kon, Nakamura and Kajimoto
Conference:
- SIGGRAPH 2017
-
More from SIGGRAPH 2017:
Type(s):
Entry Number: 11
Title:
- HangerOVER : HMD-Embedded Haptics Display With Hanger Reflex
Presenter(s):
Description:

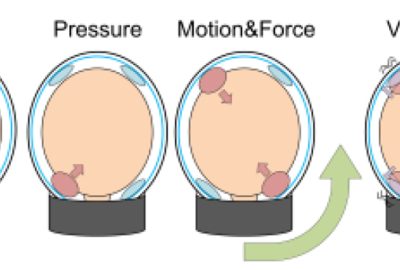

As a simple method to experience VR content with high immersion, we propose HangerOVER, an HMD-embedded haptics display that can provide both tactile and force senses using the Hanger Reflex (Figure 1). The Hanger Reflex is a phenomenon in which the head rotates unintentionally when appropriate pressure distribution is applied to the head. As it accompanies illusory external force and motion, it can be used to express haptics event in VR environment, such as being pushed and punched by a game character. The developed device is composed of air-driven balloons that can express four types of haptics senses such as touch, pressure, motion & force, and vibration. It can not only improve the immersion of the user’s VR experience, but also extends the degree of freedom of expression by game creators.
References:
M. J.JONATANDSIUCLMES, A.GRACIA, M.OLIVER. 2014. Identifying 3D Geometric Shapes with a Vibrotactile Glove, IEEE Computer Graphics and Applications, Vol.36, pp.42-51.
S.PABON, E.SOTGIU, R.LEONARDI, C.BRANCOLINI, O.PORTILLO-RODRIGUEZ, M.BERGAMASCO. 2007. A data-glove with vibro-tactile stimulators for virtual social interaction and rehabilitation, Presence, pp.345-348.
H. T.MASSIE, K. J.SALISBURY. 1994. The PHANTOM Haptic Interface: A Device for Probing Virtual Objects, Symposium on Haptic Interfaces for Virtual Environment and Teleoperator Systems.
P.LEMMENS, F.CROMPVOETS, D.BROKKEN, J. VAN DENEERENBEEMD, G. –J.DE VRIES. 2009. A body-conforming tactile jacket to enrich movie viewing, IEEE World Haptics, pp. 7–12.
J.GUGENHEIMER, D.WOLF, E.R.EIRIKSSON, P.RUKZIO. 2016. GyroVR: Simulating Inertia in Virtual Reality using Head Worn Flywheels, UIST, pp.227–232.
M.SATO, R.MATSUE, Y.HASHIMOTO, H.KAJIMOTO. 2009. Development of a Head Rotation Interface by Using Hanger Reflex, IEEE RO-MAN, pp.534–538.
Y.KON, T.NAKAMURA, H.KAJIMOTO. 2016. Hanger Reflex of the Head and Waist with Translational and Rotational Force Perception, AsiaHaptics.
Keyword(s):
- Hanger Reflex
- Haptics HMD
- virtual reality
Additional Images:
![©Yuki Kon, Takuto Nakamura, and Hiroyuki Kajimoto](https://history.siggraph.org/wp-content/uploads/2022/04/2017-ETech-11-Kon_HangerOver-02.jpg)
![©Yuki Kon, Takuto Nakamura, and Hiroyuki Kajimoto](https://history.siggraph.org/wp-content/uploads/2022/04/2017-ETech-11-Kon_HangerOver-03.jpg)
Acknowledgements:
This research is supported by the JST-ACCEL Grant Number JPMJAC1404.
