“X-SectionScope: Cross-Section Projection in Light Field Clone Image” by Furuyama, Matsubayashi, Makino and Shinoda

  • ©Yoshikazu Furuyama, Atsushi Matsubayashi, Yasutoshi Makino, and Hiroyuki Shinoda

Title:


    X-SectionScope: Cross-Section Projection in Light Field Clone Image

Presenter(s):


Entry Number: 22


Description:

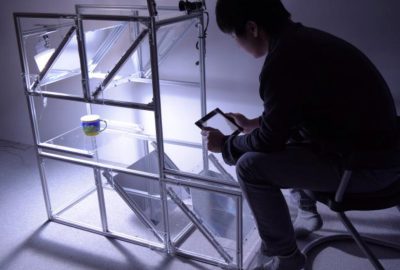

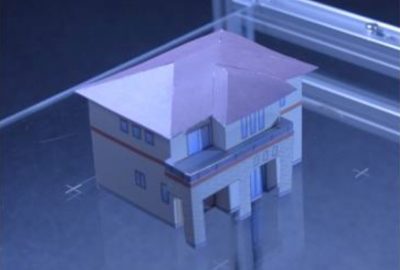

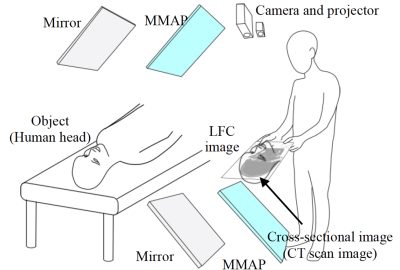

    In this paper, we propose a novel interactive 3D information visualizing display that superimposes a cross-sectional image in an aerial volumetric image of an object. Figure 2 shows a system configuration. A user can see internal images of the object, such like an X-ray image, by inserting a semi-transparent handheld screen in a cloned floating image. We use two Micro Mirror Array Plates (MMAPs) to reproduce a Light Field Clone (LFC) image. The MMAP (Aerial Imaging Plate, ASUKANET. Co., Ltd.) was designed for reconstructing aerial images in midair based on double reflections. The LFC image is a reconstructed floating 3D image which can be seen without wearing any glasses. In the HaptoClone system [Makino et al. 2015], they proposed the use of two MMAPs to reproduce LFC image of the object. By contrast, we use additional two general mirrors in the proposed system. With this configuration, the realistic LFC image appears next to the object keeping the facing direction same. Users can see both the real object and its cloned image at the same time.

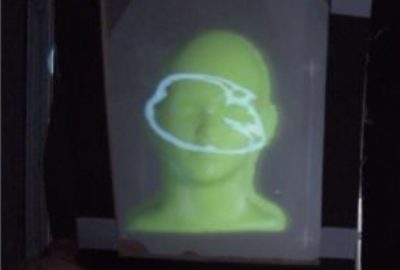

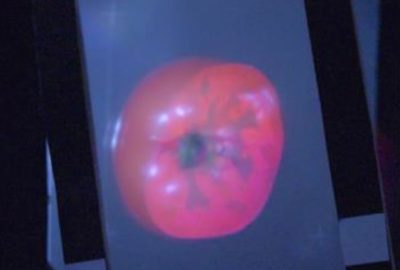

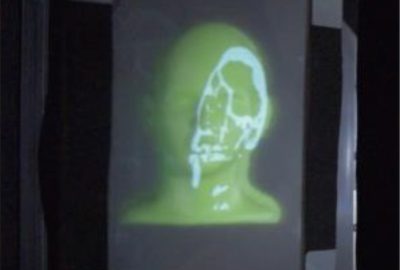

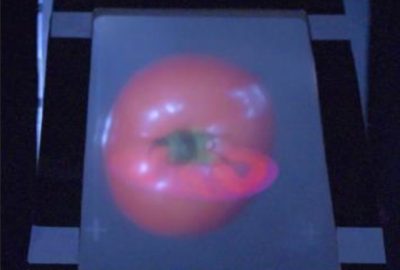

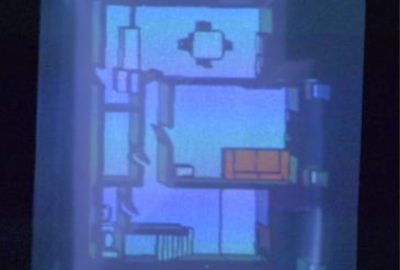

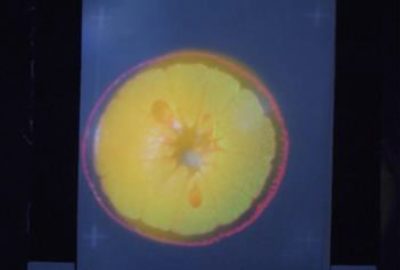

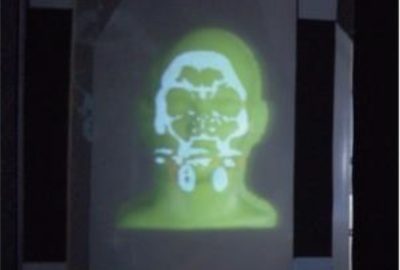

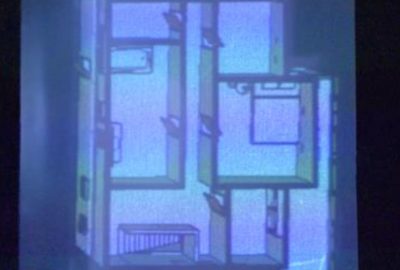

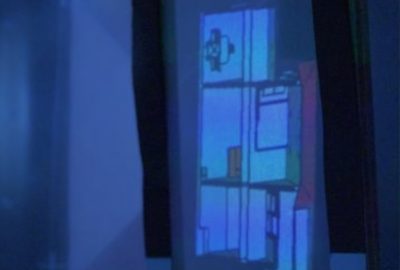

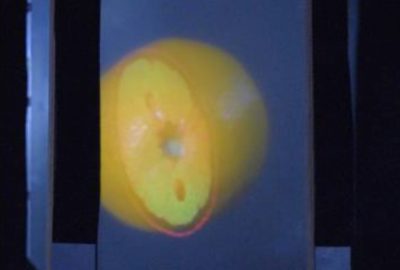

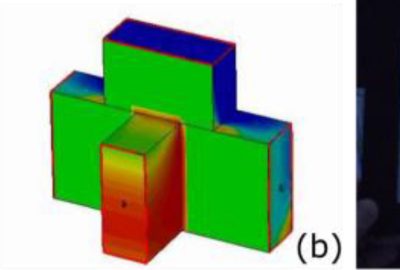

    When a semi-transparent screen is inserted into the LFC image, the system projects the cross-sectional image of the object on the screen. We use a silk screen, a fine meshed-fiber screen, as the projection screen, which was used in the previous study [Furuyama et al. 2015], for superimposing 2D image without disturbing a 3D image. The position and posture of the screen are estimated by capturing optical markers attached on each corner of the screen. A user can slice the realistic LFC image with the handheld screen. Reconstructed floating 3D image gives a cue where to insert the screen to find a particular point.

References:


    SAWADA, S., AND KAKEYA, H. 2012. Floating Volume Viewer, In Proceedings of SIGGRAPH Asia 2012 Emerging Technologies, No. 10.

    FURUYAMA, Y., MAKINO, Y., AND SHINODA, H. 2015. X-Dimensional Display: Superimposing 2D Cross Sectional Image inside 3D Wireframe Aerial Image, In Proceedings of the 25th International Conference on Artificial Reality and Telexistence and 20th Eurographics Symposium on Virtual Environments, 29-36.

    MAKINO, Y., FURUYAMA, Y., AND SHINODA, H. 2015. HaptoClone (Hapto-Optical Clone): Mid-air Haptic-Optical Human-Human Interaction with Perfect Synchronization, In Proceedings of the 3rd ACM Symposium on Spatial User Interaction, 139-139.


Acknowledgements:


    This work was supported in part by the JSPS Grant-in-Aid for Young Scientists (A) 15H05315 and JST ACCEL Embodied Media Project.
