“Transmissive Mirror Device based Near-Eye Displays with Wide Field of View” by Otao, Itoh, Takazawa, Osone and Ochiai

  • ©Kazuki Otao, Yuta Itoh, Kazuki Takazawa, Hiroyuki Osone, and Yoichi Ochiai

  • ©Kazuki Otao, Yuta Itoh, Kazuki Takazawa, Hiroyuki Osone, and Yoichi Ochiai

Title:


    Transmissive Mirror Device based Near-Eye Displays with Wide Field of View

Presenter(s):


Entry Number: 21


Description:

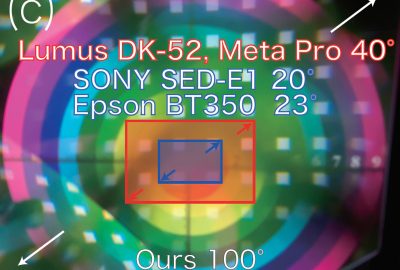

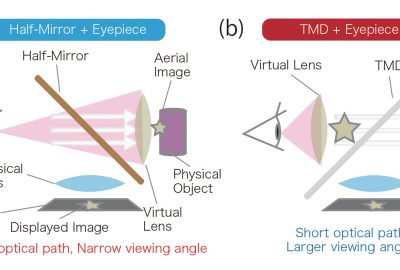

    We present a transmissive mirror device (TMD) based near-eye see-through displays with a wide viewing angle and high resolution for virtual reality and augmented reality. In past years, many optical elements, such as transmissive liquid-crystal display (LCD), half-mirror, waveguide and holographic optical element (HOE) have been adopted for near-eye see-through displays. However, it is difficult to obtain wide field of view with see-through capability for beginner developer. To accomplish this, we develop a simple see-through display that easily setup from a combination of off-the-shelf HMD and TMD. In the proposed method, we render “virtual lens,” which has the same function as the HMD lens in the air. By using TMD, it is possible to shorten the optical length between the virtual lens and the eyeball. Therefore, the aerial lens provides a wide viewing angle with see-through capability. We demonstrate a prototype with a diagonal viewing angle of 100 degrees.

References:


    Satoshi Maekawa, Kouichi Nitta, and Osamu Matoba. 2006. Transmissive optical imaging device with micromirror array. (2006), 6392 – 6392 – 8 pages. https://doi.org/10.1117/12.690574

    Andrew Maimone, Douglas Lanman, Kishore Rathinavel, Kurtis Keller, David Luebke, and Henry Fuchs. 2014. Pinlight Displays: Wide Field of View Augmented Reality Eyeglasses Using Defocused Point Light Sources. ACM Trans. Graph. 33, 4, Article 89 (July 2014), 11 pages. https://doi.org/10.1145/2601097.2601141

    Yasutoshi Makino, Yoshikazu Furuyama, Seki Inoue, and Hiroyuki Shinoda. 2016. HaptoClone (Haptic-Optical Clone) for Mutual Tele-Environment by Real-time 3D Image Transfer with Midair Force Feedback. In Proceedings of the 2016 CHI Conference on Human Factors in Computing Systems (CHI ’16). ACM, New York, NY, USA, 1980–1990. https://doi.org/10.1145/2858036.2858481

    Kazuki Otao, Yuta Itoh, Hiroyuki Osone, Kazuki Takazawa, Shunnosuke Kataoka, and Yoichi Ochiai. 2017. Light Field Blender: Designing Optics and Rendering Methods for See-through and Aerial Near-eye Display. In SIGGRAPH Asia 2017 Technical Briefs (SA ’17). ACM, New York, NY, USA, Article 9, 4 pages. https://doi.org/10.1145/3145749.3149425

    Kazuki Otao, Yuta Itoh, Kazuki Takazawa, Hiroyuki Osone, and Yoichi Ochiai. 2018. Air Mounted Eyepiece: Optical See-Through HMD Design with Aerial Optical Functions. In Proceedings of the 9th Augmented Human International Conference (AH ’18). ACM, New York, NY, USA, Article 1, 7 pages. https://doi.org/10.1145/3174910.3174911


Additional Images:

©Kazuki Otao, Yuta Itoh, Kazuki Takazawa, Hiroyuki Osone, and Yoichi Ochiai ©Kazuki Otao, Yuta Itoh, Kazuki Takazawa, Hiroyuki Osone, and Yoichi Ochiai ©Kazuki Otao, Yuta Itoh, Kazuki Takazawa, Hiroyuki Osone, and Yoichi Ochiai
