Introduction

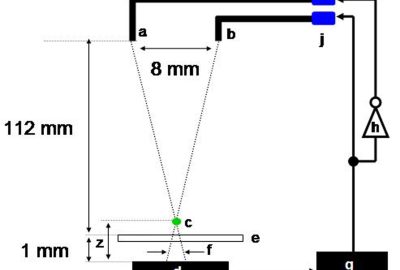

A simple inexpensive high-contrast stereo microscopic is constructed from a single video imager sensor. Two field- synchronous LEDs illuminate the subject creating disparity. The stereo microscope outputs standard field-sequential 3D video and is compatible with commercial head mounted displays and LCD shutter glasses.

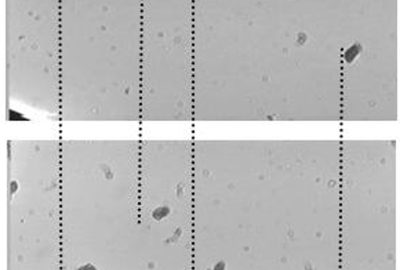

The microscope has no lens, no focus, a large depth of field and no distortion between the stereo channels, reducing depth calculation to a single one-dimensional sliding correlation per object.

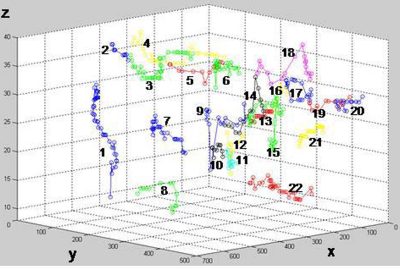

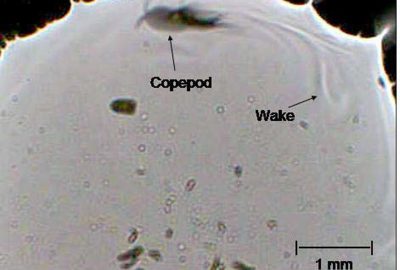

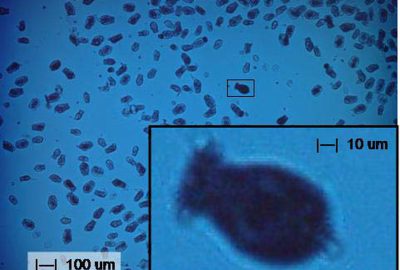

The easy-to-use microscope provides students and teachers with a fast and convenient way to share images of microorganisms. The microscope is compact and robust, well suited for remote sensing. The focus-free low-cost design makes it practical for a computer to continuously monitor and manage an array of microscopes for high-throughput biological experiments and research.
