“HapTONE: Haptic Instrument for Enriched Musical Play” by Ogawa, Tanabe, Yem, Hachisu and Kajimoto

  • ©Daichi Ogawa, Kenta Tanabe, Vibol Yem, Taku Hachisu, and Hiroyuki Kajimoto



Entry Number: 12


    HapTONE: Haptic Instrument for Enriched Musical Play

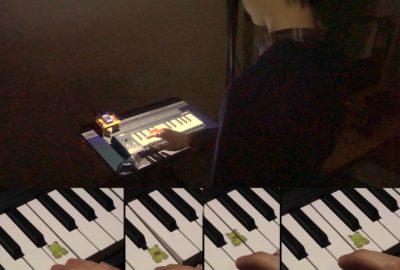

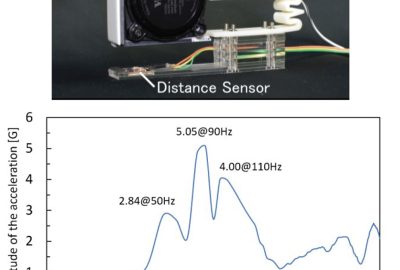

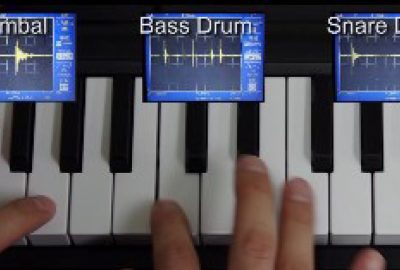

    This paper describes a novel music entertainment system that draws on auditory, tactile and visual senses. HapTONE presents players with high-fidelity vibrotactile sensations, not only after pressing the keyboard but also during the pressing operation itself. We developed keyboard type instrument that composed of key unit which is structured a vibrator and a distance sensor. This instrument reproduces the touch sensation of a keyboard, stringed, wind, percussion or non-musical instrument. We describe three applications of HapTONE that include: 1) the accurate replication of percussion instruments; 2) playing of pseudo-stringed instruments, and 3) synchronized vibration with animation. HapTONE is a musical entertainment system for players themselves using auditory, tactile and visual senses.


    BAIJAL, A., KIM, J., BRANJE, C., RUSSO, F. AND FELS, D.I., 2012. Composing Vibrotactile Music: A Multi-Sensory Experience with the Emoti-Chair. Proceedings of IEEE Conference on Haptic Symposium (HAPTICS), 509–515.

    LEWISTON, C., 2008. MAGKEYS: A Haptic Guidance Keyboard System for Facilitating Sensorimotor Training and Rehabilitation. PhD thesis, Massachusetts Institute of Technology.

    MARSHALL, M. T. AND WANDERLEY, M.M., 2006. Vibrotactile Feedback in Digital Musical Instruments. Proceedings of New Interfaces for Musical Expression (NIME06), 226–229.

    OBOE, R., AND DE POLI, G, 2002. Multi-instrument virtual keyboard – The MIKEY project. Proceedings of New Instruments for Musical Expression (NIME02), 1–6.

    OKAMURA, A. M., CUTKOSKY, M.R. AND DENNERLEIN, J.T., 2001. Reality Based Models for Vibration Feedback in Virtual Environments. IEEE/ASME Trans. on Mechatronics, 6, 245–252.
