“A Colloidal Display: membrane screen that combines transparency, BRDF and 3D volume” by Ochiai, Oyama and Toyoshima
Notice: Pod Template PHP code has been deprecated, please use WP Templates instead of embedding PHP. has been deprecated since Pods version 2.3 with no alternative available. in /data/siggraph/websites/history/wp-content/plugins/pods/includes/general.php on line 518
Conference:
- SIGGRAPH 2012
-
More from SIGGRAPH 2012:
Notice: Array to string conversion in /data/siggraph/websites/history/wp-content/plugins/siggraph-archive-plugin/src/next_previous/source.php on line 345
Notice: Array to string conversion in /data/siggraph/websites/history/wp-content/plugins/siggraph-archive-plugin/src/next_previous/source.php on line 345
Type(s):
Entry Number: 02
Title:
- A Colloidal Display: membrane screen that combines transparency, BRDF and 3D volume
Presenter(s):
Description:

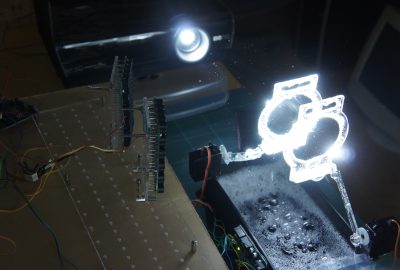

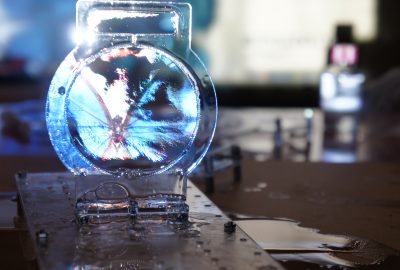

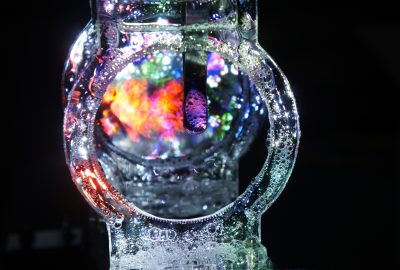

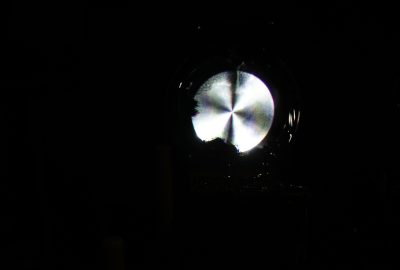

It is a common knowledge that the surface of soap bubble is a micro membrane. It allows light to pass through and displays the color on its structure. We developed an ultra thin and flexible BRDF screen using the mixture of two colloidal liquids. There have been several researches on dynamic BRDF display[1] in the past. However, our work is different in several points. Our membrane screen can be controlled using ultrasonic vibrations. Membrane can change its transparency and surface states depending on the scales of ultrasonic waves. Based on these facts, we developed several applications of the membranes such as 3D volume screen.
The combination of the ultrasonic waves and ultra thin membranes makes more realistic, distinctive, and vivid imageries on screen. This system contributes to open up a new path for display engineering with sharp imageries, transparency, BRDF and flexibility.
References:
[1] M. Hullin et al., Dynamic Display of BRDFs. In: Proceedings of Eurographics 2011.
Additional Images:
