“Visualization of large ISO-Surfaces based on nested clip-boxes” by Forstmann and Ohya

  • ©Sven Forstmann and Jun Ohya

  • ©Sven Forstmann and Jun Ohya

Conference:


Type(s):


Title:

    Visualization of large ISO-Surfaces based on nested clip-boxes

Presenter(s)/Author(s):



Abstract:

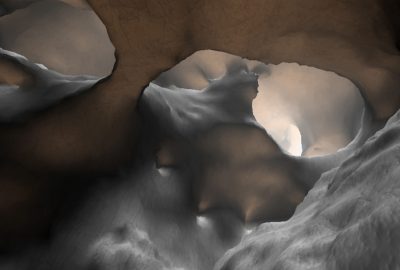

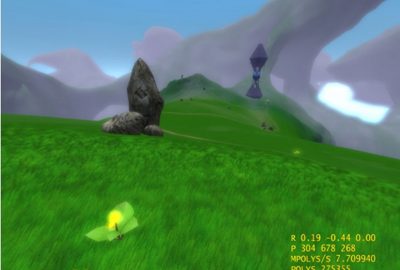

    This paper proposes a novel algorithm for the view-dependent visualization of large iso-surfaces in real-time. It is inspired by the terrain rendering algorithm of Losasso et al. that uses nested geometry clip-maps to achieve continuous LOD (level of detail), rather than building a complex LOD hierarchy. As their system is optimized to visualize terrain from 2D height-maps, not iso surfaces from 3D volume data, our proposed algorithm required a complete redesign to ensure simplicity, rendering performance and continuous framerates for the 3D case as well. The result is a unique continuous LOD approach, based on nested clip-boxes for visualizing the triangular geometry. Note that since our proposed algorithm uses nesting for 3D cases, ”clip-maps” needed to be extended to ”clip-boxes”.

References:


    1. B. Gregorski, M. Duchaineau 2002. Interactive view-dependent rendering of large isosurfaces. In Proceedings of the conference on Visualization ’02.
    2. Frank Losasso, H. H. 2004. Geometry clipmaps: terrain rendering using nested regular grids. In Proceedings of the 2004 SIGGRAPH Conference.
    3. Lindstrom, P. 2003. Out-of-core construction and visualization of multiresolution surfaces. In Proceedings of the 2003 symposium on Interactive 3D graphics.
