“Spherical Full-parallax Light-field Display Using Ball of Fly-eye Mirror” by Yano and Yendo

  • ©Hiroaki Yano and Tomohiro Yendo

Title:


    Spherical Full-parallax Light-field Display Using Ball of Fly-eye Mirror

Presenter(s):


Entry Number: 17


Description:

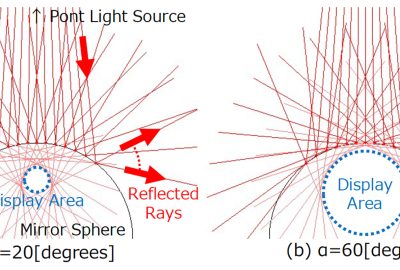

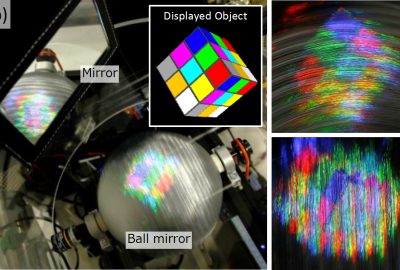

    We present an optical system design for a 3D display that is spherical, full-parallax, and occlusion-capable with a wide viewing zone and no head tracking. The proposed system provides a new approach for the 3D display and thereby addresses limitations of the conventional light-field display structure. Specifically, a spherical full-parallax light-field display is difficult to achieve because it is challenging to curve the conventional structure of the light-field displays. The key elements of the system are a specially designed ball mirror and a high-speed projector. The ball mirror uniaxially rotates and reflects rays from the projector to various angles. The intensities of these rays are controlled by the projector. Rays from a virtual object inside the ball mirror are reconstructed, and the system acts as a light-field display based on the time-division multiplexing method. We implemented this ball mirror by 3D printing and metal plating. The prototype successfully displays a 3D image and the system feasibility is confirmed. Our system is thus suitable for displaying 3D images to many viewers simultaneously and it can be effectively employed as in art or advertisement installation.

References:


    Arthur Appel. 1968. Some techniques for shading machine renderings of solids. In Proceedings of the April 30–May 2, 1968, spring joint computer conference. ACM, 37–45.

    Gregg E Favalora, Joshua Napoli, Deirdre M Hall, Rick K Dorval, Michael Giovinco, Michael J Richmond, and Won S Chun. 2002. 100-million-voxel volumetric display. In Cockpit Displays IX: Displays for Defense Applications, Vol. 4712. International Society for Optics and Photonics, 300–313.

    F. Ferreira, M. Cabral, O. Belloc, G. Miller, C. Kurashima, R. de Deus Lopes, I. Stavness, J. Anacleto, M. Zuffo, and S. Fels. 2014. Spheree: A 3D Perspective-corrected Interactive Spherical Scalable Display. In ACM SIGGRAPH 2014 Posters (SIGGRAPH ’14). ACM, New York, NY, USA, Article 86, 1 pages. https://doi.org/10.1145/2614217.2630585

    Andrew Jones, Ian McDowall, Hideshi Yamada, Mark Bolas, and Paul Debevec. 2007. Rendering for an Interactive 360&Deg; Light Field Display. ACM Trans. Graph. 26, 3, Article 40 (July 2007). https://doi.org/10.1145/1276377.1276427

    Gabriel Lippmann. 1908. Epreuves reversibles donnant la sensation du relief. J. Phys. Theor. Appl. 7, 1 (1908), 821–825.


Acknowledgements:


    This work was supported by JSPS KAKENHI Grant Numbers JP17H01776, JP16K12475.
