    QuintPixel: Multi-Primary Color Display Systems

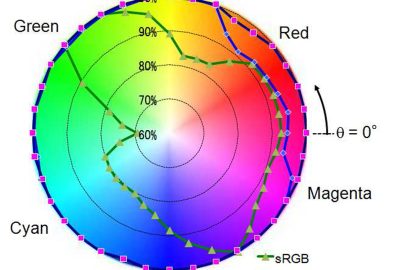

    Today’s conventional Liquid Crystal Displays (LCD) are assembled with three primary colors (red, green, and blue: RGB). Further, the most common color gamut standards are defined in RGB-primary colors. Such a system lacks the capability to reproduce all of the real-surface colors; for example, sRGB cannot cover Pointer’s real surface color dataset which consists of the measurement over the existing colors in the world except self-luminous objects [Pointer 1980] at most of the hue angles (see Figure 1 right). However, recent developments on display devices have made it possible to have wider color gamut than before. However, as long as there are only three primary colors, such display system still cannot cover the real surface colors efficiently. An example of relatively wide gamut (DCI 2005) in Figure 1 still shows poor coverage ratio against Pointer’s dataset.

Other Information:


    CHINO, E., TAJIRI, K., KAWAKAMI, H., OHIRA, H., KAMIJO, K., KANEKO, H., KATO, S., OZAWA, Y., KURUMISAWA, T., INOUE, K., ENDO, K., MORIYA, H., ARAGAKI, T., AND MURAI, K. 2006. Development of wide-color-gamut mobile displays with four-primary-color LCDs. In SID DIGEST, 1221 – 1224.

    POINTER, M. R. 1980. The gamut of real surface colours. Color Research and Application 5, pp. 145 – 155.

    YANG, Y.-C., SONG, K., RHO, S., RHO, N.-S., HONG, S., DEUL, K. B., HONG, M., CHUNG, K., CHOE, W., LEE, S., KIM, C. Y., LEE, S.-H., AND KIM, H.-R. 2005. Development of six primary-color LCD. In SID DIGEST, 1210 – 1213.
