“Pinlight Displays: Wide Field of View Augmented Reality Eyeglasses using Defocused Point Light Sources” by Maimone, Lanman, Rathinavel, Keller, Luebke, et al. …

  • ©Andrew Maimone, Douglas Lanman, Kishore Rathinavel, Kurtis Keller, David P. Luebke, and Henry Fuchs

  • ©Andrew Maimone, Douglas Lanman, Kishore Rathinavel, Kurtis Keller, David P. Luebke, and Henry Fuchs

Conference:


Entry Number: 20

Title:


    Pinlight Displays: Wide Field of View Augmented Reality Eyeglasses using Defocused Point Light Sources

Presenter(s):



Description:

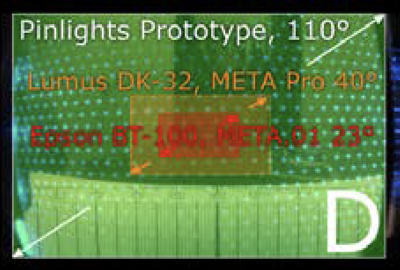

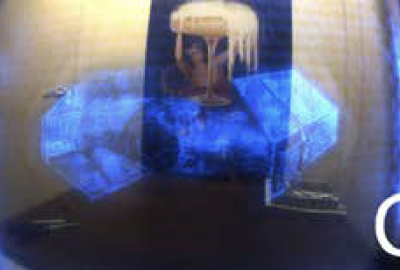

    We present a novel design for an optical see-through augmented reality display that offers a wide field of view and supports a compact form factor approaching ordinary eyeglasses. Instead of conventional optics, our design uses only two simple hardware components: an LCD panel and an array of point light sources (implemented as an edge-lit, etched acrylic sheet) placed directly in front of the eye, out of focus. We code the point light sources through the LCD to form miniature see-through projectors. A virtual aperture encoded on the LCD allows the projectors to be tiled, creating an arbitrarily wide field of view. Software rearranges the target augmented image into tiled sub-images sent to the display, which appear as the correct image when observed out of the viewer’s accommodation range. We evaluate the design space of tiled point light projectors with an emphasis on increasing spatial resolution through the use of eye tracking, and demonstrate a preliminary human viewable display.

References:


    MOHAN, A., WOO, G., HIURA, S., SMITHWICK, Q., AND RASKAR, R. 2009. Bokode: Imperceptible visual tags for camera based interaction from a distance. In ACM SIGGRAPH 2009 Papers, ACM, New York, NY, USA, SIGGRAPH ’09, 98:1– 98:8.

    SON, J.-Y., SAVELJEV, V. V., KIM, D.-S., KWON, Y.-M., AND KIM, S.-H. 2007. Three-dimensional imaging system based on a light-emitting diode array. Optical Engineering 46, 10, 103205–103205–4.


Additional Images:

©Andrew Maimone, Douglas Lanman, Kishore Rathinavel, Kurtis Keller, David P. Luebke, and Henry Fuchs ©Andrew Maimone, Douglas Lanman, Kishore Rathinavel, Kurtis Keller, David P. Luebke, and Henry Fuchs
