“High Brightness HDR Projection Using Dynamic Phase Modulation” by Damberg, Ballestad, Kozak, Minor, Kumaran, et al. …
Conference:
- SIGGRAPH 2015
-
More from SIGGRAPH 2015:
Type(s):
Entry Number: 13
Title:
- High Brightness HDR Projection Using Dynamic Phase Modulation
Presenter(s):
Description:

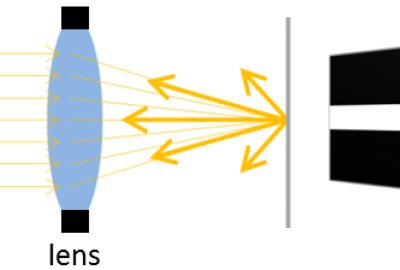

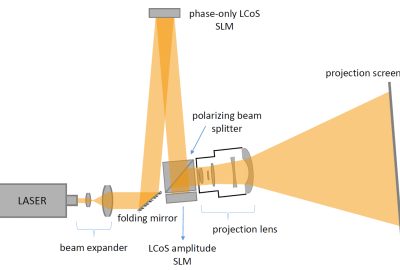

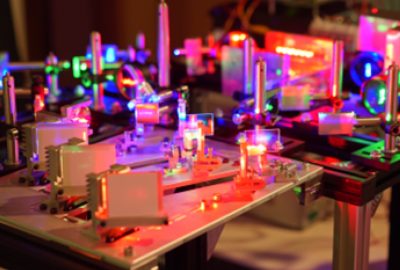

We demonstrate a new, large screen projection technology that utilizes dynamic phase modulation for light steering to achieve both black levels indiscernible from the screen in dark environments and peak luminance levels some 20 times above what conventional projectors can reach with the same light source. The human visual system’s near-logarithmic brightness response to luminance is demanding on the lamp requirements in a conventional display system. With a steerable light source, excess light from dark areas in an image can be used for areas requiring higher brightness thus breaking the conventional linearity between out-of-lens-lumens and onscreen- luminance. We will demonstrate our new, full color prototype which reproduces very realistic appearing images and requires only a fraction of the energy of a traditional projector (Figure 1).
References:
BLACKHAM, G., AND NEALE, A., 1998. Image display apparatus, Mar. 18. EP Patent App. EP19,970,306,624.
DAMBERG, G., SEETZEN, H., WARD, G., HEIDRICH, W., AND WHITEHEAD, L. 2007. 3.2: High dynamic range projection systems. In SID Symposium Digest of Technical Papers, vol. 38.
HOSKINSON, R., STOEBER, B., HEIDRICH, W., AND FELS, S. 2010. Light reallocation for high contrast projection. ACM Transactions on Graphics (TOG) 29, 6, 165.
REINHARD, E., POULI, T., KUNKEL, T., LONG, B., BALLESTAD, A., AND DAMBERG, G. 2012. Calibrated image appearance reproduction. ACM Transactions on Graphics (TOG) 31, 6, 201.
