“All-frequency rendering of dynamic, spatially-varying reflectance”
Conference:
Type(s):
Title:
- All-frequency rendering of dynamic, spatially-varying reflectance
Session/Category Title: Real-time rendering
Presenter(s)/Author(s):
Moderator(s):

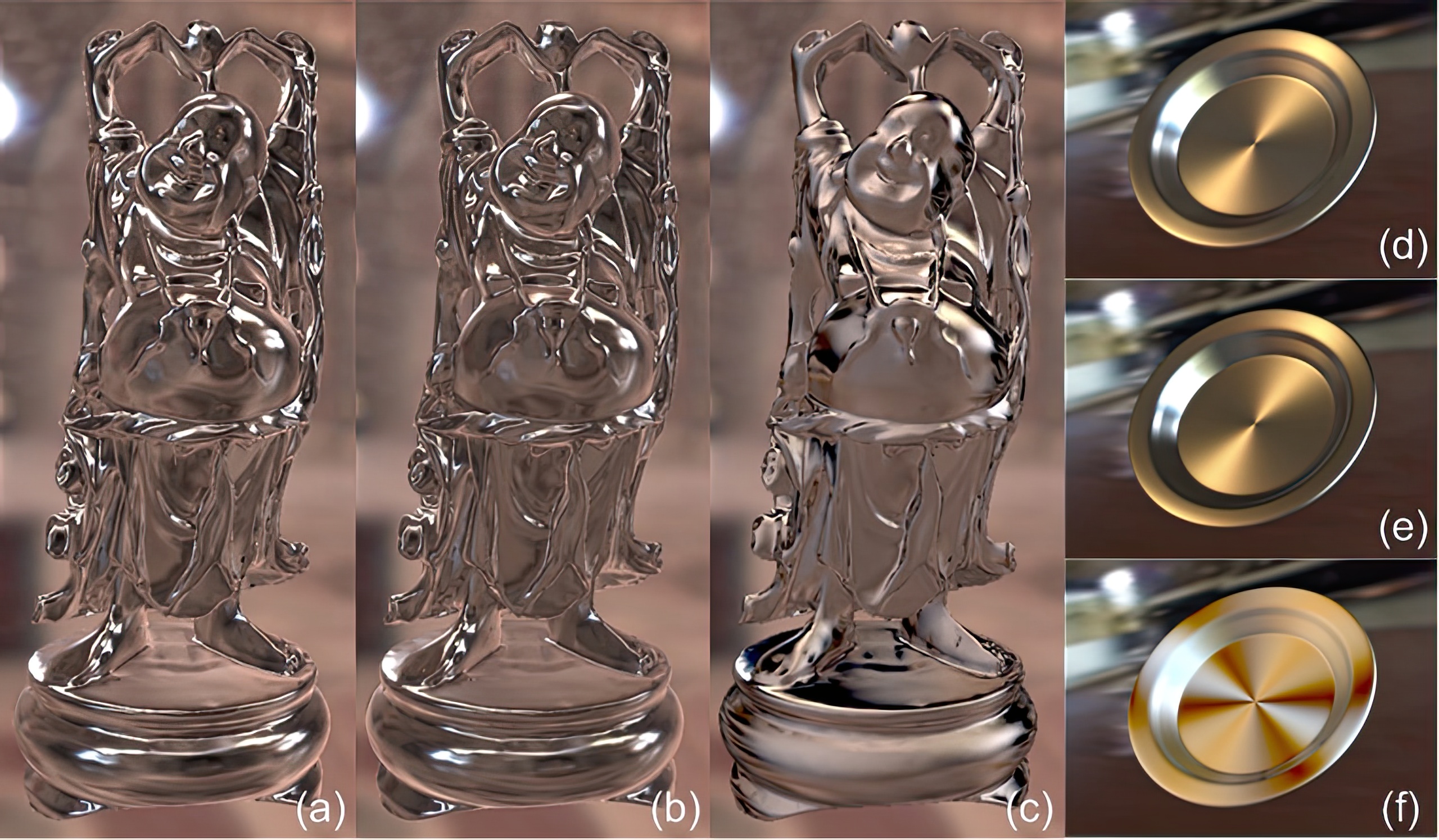

Abstract:
We describe a technique for real-time rendering of dynamic, spatially-varying BRDFs in static scenes with all-frequency shadows from environmental and point lights. The 6D SVBRDF is represented with a general microfacet model and spherical lobes fit to its 4D spatially-varying normal distribution function (SVNDF). A sum of spherical Gaussians (SGs) provides an accurate approximation with a small number of lobes. Parametric BRDFs are fit on-the-fly using simple analytic expressions; measured BRDFs are fit as a preprocess using nonlinear optimization. Our BRDF representation is compact, allows detailed textures, is closed under products and rotations, and supports reflectance of arbitrarily high specularity. At run-time, SGs representing the NDF are warped to align the half-angle vector to the lighting direction and multiplied by the microfacet shadowing and Fresnel factors. This yields the relevant 2D view slice on-the-fly at each pixel, still represented in the SG basis. We account for macro-scale shadowing using a new, nonlinear visibility representation based on spherical signed distance functions (SSDFs). SSDFs allow per-pixel interpolation of high-frequency visibility without ghosting and can be multiplied by the BRDF and lighting efficiently on the GPU.
References:
1. Arvo, J., Torrance, K., and Smits, B. 1994. A framework for the analysis of error in global illumination algorithms. In Proceedings of SIGGRAPH 1994, ACM, 75–84. Google ScholarDigital Library
2. Ashikhmin, M., and Shirley, P. 2000. An anisotropic Phong BRDF model. Journal of Graphics Tools 5, 2, 25–32. Google ScholarDigital Library
3. Ashikmin, M., Premože, S., and Shirley, P. 2000. A microfacet-based BRDF generator. In Proceedings of SIGGRAPH 2000, ACM, 65–74. Google ScholarDigital Library
4. Ben-Artzi, A., Overbeck, R., and Ramamoorthi, R. 2006. Real-time BRDF editing in complex lighting. ACM Transactions on Graphics 25, 3, 945–954. Google ScholarDigital Library
5. Ben-Artzi, A., Egan, K., Ramamoorthi, R., and Durand, F. 2008. A precomputed polynomial representation for interactive BRDF editing with global illumination. ACM Transactions on Graphics 27, 2, 13:1–13:13. Google ScholarDigital Library
6. Blinn, J. F. 1977. Models of light reflection for computer synthesized pictures. In Computer Graphics (Proceedings of SIGGRAPH 77), ACM, vol. 11, 192–198. Google ScholarDigital Library
7. Cheslack-Postava, E., Wang, R., Akerlund, O., and Pellacini, F. 2008. Fast, realistic lighting and material design using nonlinear cut approximation. ACM Transactions on Graphics 27, 5, 128:1–128:10. Google ScholarDigital Library
8. Cook, R. L., and Torrance, K. E. 1981. A reflectance model for computer graphics. In Computer Graphics (Proceedings of SIGGRAPH 81), ACM, vol. 1, 307–316. Google ScholarDigital Library
9. Green, P., Kautz, J., Matusik, W., and Durand, F. 2006. View-dependent precomputed light transport using nonlinear gaussian function approximations. In I3D ’06: Proceedings of the 2006 Symposium on Interactive 3D Graphics and Games, ACM, 7–14. Google ScholarDigital Library
10. Green, P., Kautz, J., and Durand, F. 2007. Efficient reflectance and visibility approximations for environment map rendering. Computer Graphics Forum (Proc. EUROGRAPHICS) 26, 3, 495–502.Google ScholarCross Ref
11. Han, C., Sun, B., Ramamoorthi, R., and Grinspun, E. 2007. Frequency domain normal map filtering. ACM Transactions on Graphics 26, 3, 28:1–28:11. Google ScholarDigital Library
12. Kautz, J., Vázquez, P.-P., Heidrich, W., and Seidel, H.-P. 2000. Unified approach to prefiltered environment maps. In Proceedings of the Eurographics Workshop on Rendering Techniques 2000, Springer-Verlag, London, UK, 185–196. Google ScholarDigital Library
13. Křivánek, J., and Colbert, M. 2008. Real-time shading with filtered importance sampling. Computer Graphics Forum (Proc. of Eurographics Symposium on Rendering) 27, 4. Google ScholarDigital Library
14. Lawrence, J., Ben-Artzi, A., DeCoro, C., Matusik, W., Pfister, H., Ramamoorthi, R., and Rusinkiewicz, S. 2006. Inverse shade trees for non-parametric material representation and editing. ACM Transactions on Graphics 25, 3, 735–745. Google ScholarDigital Library
15. Liu, X., Sloan, P. P., Shum, H. Y., and Snyder, J. 2004. All-frequency precomputed radiance transfer for glossy objects. In Proceedings of the Eurographics Symposium on Rendering, Eurographics Association, 337–344. Google ScholarCross Ref
16. Mahajan, D., Tseng, Y.-T., and Ramamoorthi, R. 2008. An analysis of the in-out BRDF factorization for view-dependent relighting. In Eurographics Symposium on Rendering, vol. 27. Google ScholarDigital Library
17. Matusik, W., Pfister, H., Brand, M., and McMillan, L. 2003. A data-driven reflectance model. ACM Transactions on Graphics 22, 3, 759–769. Google ScholarDigital Library
18. McAllister, D. K., Lastra, A., and Heidrich, W. 2002. Efficient rendering of spatial bi-directional reflectance distribution functions. In HWWS ’02: Proceedings of the ACM SIGGRAPH/EUROGRAPHICS Conference on Graphics Hardware, Eurographics Association, Aire-la-Ville, Switzerland, 79–88. Google ScholarDigital Library
19. Ng, R., Ramamoorthi, R., and Hanrahan, P. 2003. All-frequency shadows using non-linear wavelet lighting approximation. ACM Transactions on Graphics 22, 3, 376–381. Google ScholarDigital Library
20. Ng, R., Ramamoorthi, R., and Hanrahan, P. 2004. Triple product wavelet integrals for all-frequency relighting. ACM Transactions on Graphics 23, 3, 477–487. Google ScholarDigital Library
21. Ngan, A., Durand, F., and Matusik, W. 2005. Experimental analysis of BRDF models. In Rendering Techniques 2005: 16th Eurographics Workshop on Rendering, 117–126. Google ScholarCross Ref
22. Nocedal, J., and Wright, S. J. 1999. Numerical optimization. Springer Series in Operations Research, Springer-Verlag.Google Scholar
23. Ren, Z., Wang, R., Snyder, J., Zhou, K., Liu, X., Sun, B., Sloan, P.-P., Bao, H., Peng, Q., and Guo, B. 2006. Real-time soft shadows in dynamic scenes using spherical harmonic exponentiation. ACM Transactions on Graphics 25, 3, 977–986. Google ScholarDigital Library
24. Shirley, P., and Chiu, K. 1997. A low distortion map between disk and square. J. Graph. Tools 2, 3, 45–52. Google ScholarDigital Library
25. Sloan, P.-P., Kautz, J., and Snyder, J. 2002. Precomputed radiance transfer for real-time rendering in dynamic, low-frequency lighting environments. In Proceedings of SIGGRAPH 2002, ACM, 527–536. Google ScholarDigital Library
26. Sloan, P.-P., Liu, X., Shum, H.-Y., and Snyder, J. 2003. Bi-scale radiance transfer. ACM Transactions on Graphics 22, 3 (July), 370–375. Google ScholarDigital Library
27. Sloan, P.-P., Luna, B., and Snyder, J. 2005. Local, deformable precomputed radiance transfer. ACM Transactions on Graphics 24, 3, 1216–1224. Google ScholarDigital Library
28. Sun, X., Zhou, K., Chen, Y., Lin, S., Shi, J., and Guo, B. 2007. Interactive relighting with dynamic BRDFs. ACM Transactions on Graphics 26, 3, 27:1–27:10. Google ScholarDigital Library
29. Torrance, K. E., and Sparrow, E. M. 1967. Theory for off-specular reflection from roughened surfaces. In Journal of the Oprical Society of America, vol. 57.Google Scholar
30. Tsai, Y.-T., and Shih, Z.-C. 2006. All-frequency precomputed radiance transfer using spherical radial basis functions and clustered tensor approximation. ACM Transactions on Graphics 25, 3, 967–976. Google ScholarDigital Library
31. Tsai, Y.-T., Chang, C.-C., Jiang, Q.-Z., and Weng, S.-C. 2008. Importance sampling of products from illumination and BRDF using spherical radial basis functions. Vis. Comput. 24, 7, 817–826. Google ScholarDigital Library
32. Walter, B., Fernandez, S., Arbree, A., Bala, K., Donikian, M., and Greenberg, D. P. 2005. Lightcuts: a scalable approach to illumination. ACM Transactions on Graphics 24, 3, 1098–1107. Google ScholarDigital Library
33. Walter, B., Arbree, A., Bala, K., and Greenberg, D. P. 2006. Multidimensional lightcuts. ACM Transactions on Graphics 25, 3, 1081–1088. Google ScholarDigital Library
34. Wang, R., Tran, J., and Luebke, D. 2004. All-frequency relighting of non-diffuse objects using separable BRDF approximation. In Rendering Techniques, Eurographics Association, 345–354. Google ScholarCross Ref
35. Wang, R., Tran, J., and Luebke, D. 2006. All-frequency relighting of glossy objects. ACM Transactions on Graphics 25, 2, 293–318. Google ScholarDigital Library
36. Wang, J., Zhao, S., Tong, X., Snyder, J., and Guo, B. 2008. Modeling anisotropic surface reflectance with example-based microfacet synthesis. ACM Transactions on Graphics 27, 3, 41:1–41:9. Google ScholarDigital Library
37. Ward, G. J. 1992. Measuring and modeling anisotropic reflection. In Computer Graphics (Proceedings of ACM SIGGRAPH 92), ACM, vol. 26, 265–272. Google ScholarDigital Library
38. Xu, K., Jia, Y.-T., Fu, H., Hu, S., and Tai, C.-L. 2008. Spherical piecewise constant basis functions for all-frequency precomputed radiance transfer. IEEE Transactions on Visualization and Computer Graphics 14, 2, 454–467. Google ScholarDigital Library
39. Zhou, K., Hu, Y., Lin, S., Guo, B., and Shum, H.-Y. 2005. Precomputed shadow fields for dynamic scenes. ACM Transactions on Graphics 24, 3, 1196–1201. Google ScholarDigital Library
40. Zhu, C., Byrd, R. H., Lu, P., and Nocedal, J. 1997. Algorithm 778: L-BFGS-B: Fortran subroutines for large-scale bound-constrained optimization. ACM Transactions on Mathematical Software 23, 4, 550–560. Google ScholarDigital Library
