“A Novel Maxwellian Optics Combining Spherical Multi Pinholes and TMD for Enhanced Field of View” by Futamura, Inui, Matsumoto, Nakano and Tokiwa
Conference:
Type(s):
Title:
- A Novel Maxwellian Optics Combining Spherical Multi Pinholes and TMD for Enhanced Field of View
Session/Category Title:
- Displays & Optics
Presenter(s)/Author(s):
Abstract:

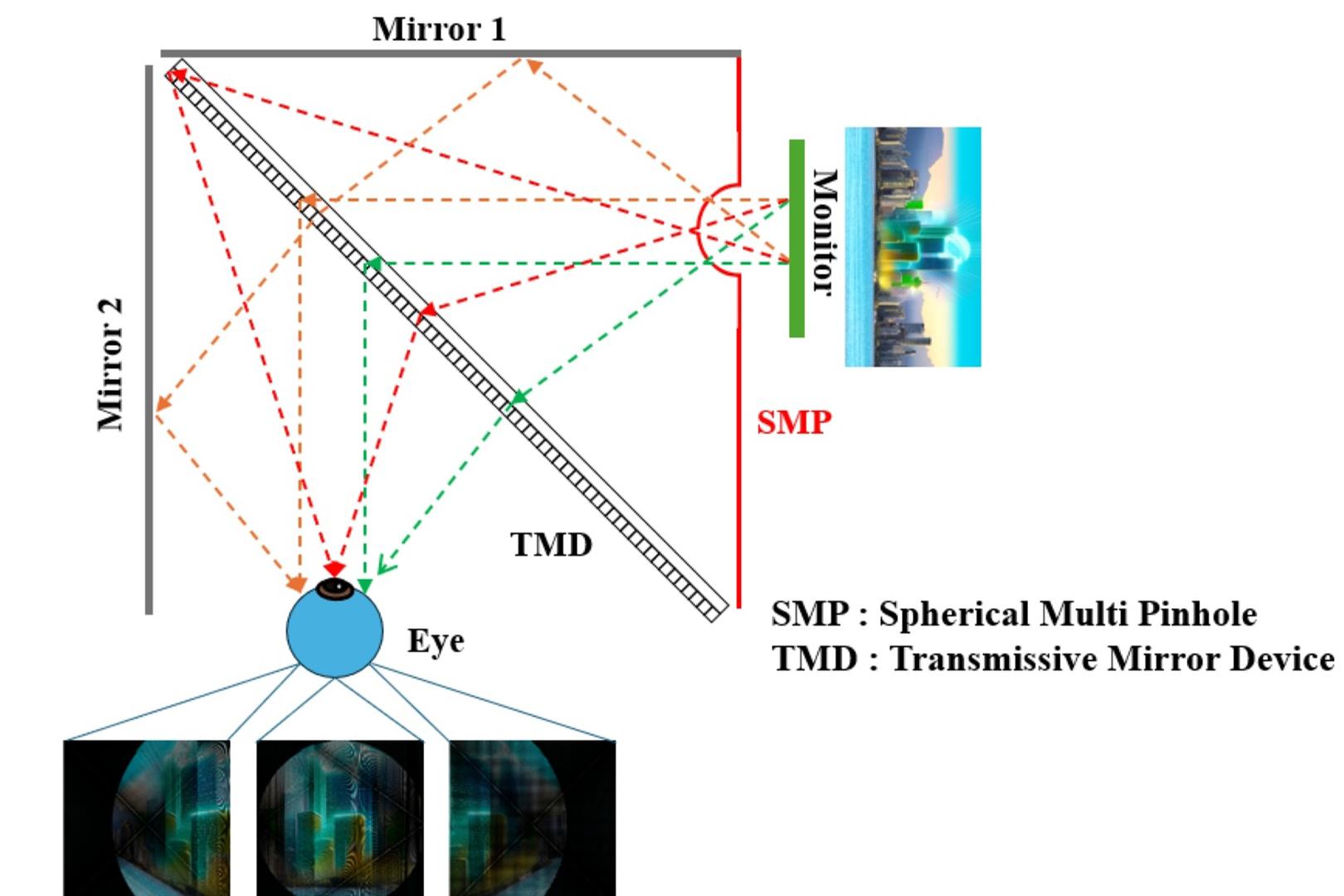

This study proposes a novel Maxwellian optical system that combines a transmissive mirror device (TMD) with spherical multi-pinholes. Its effectiveness was verified through 2D and 3D simulations, demonstrating a significantly wider viewing angle than that of conventional systems.
References:
[1] E. Shimizu. 2011. Retinal Scanning/Projection Display. Image information and Television Engineers, 65, 6, 758-763.
[2] Y. Takatsuka, et. al. 2014. Retinal projection type super multi-view head-mounted 3D display. Proc. 2014 Annu. Conv. ITE, 23-9.
[3] H. Takahashi, et. al. 2004. An Approach to a Retinal Projection Display with Wide Viewing Zone. Trans. Inst. Electr. Eng. Jpn., Sect. C, 124, 2, 461-466.
[4] R. Dirk Beer, et. al. 2005. The Extended Maxwellian View (BIGMAX): A high-intensity, high-saturation color display for clinical diagnosis and vision research. Behavior Research Methods, 37, 3, 513-521.
[5] T. Tokiwa, et. al. 2024. Retinal Projection Device. Japanese Patent Application, No. 2024-195084.
[6] K. Otao, et. al. 2018. Air Mounted Eyepiece: Optical See-Through HMD Design with Aerial Optical Functions. AH2018, February 7-9.
[7] M. Otsubo. 2021. Aerial Imaging Principle and its Commercialization and Future Developments. Proc. Int. Display Workshops, 28, 227-230.
