“Towards VR and AR: 360° Light Field Display with Mid-Air Interaction”
Conference:
Experience Type(s):
Title:
- Towards VR and AR: 360° Light Field Display with Mid-Air Interaction
Description:

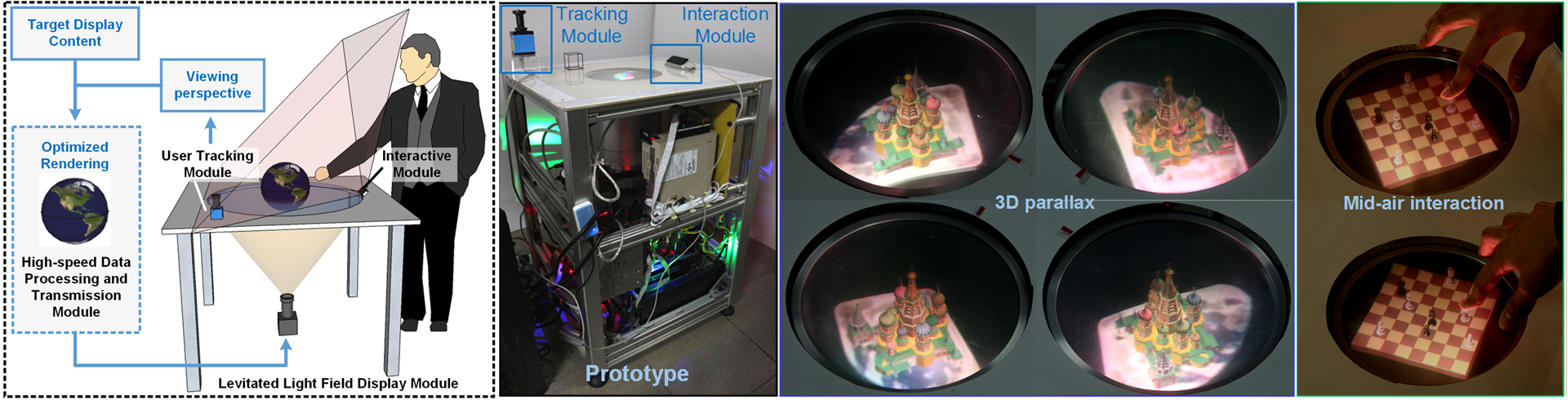

We present a 360° light field display to visualize 3D objects above the table-top screen, and provide a graspable and measurable virtual or augmented reality environment. The display is constructed by a spinning flat-plate deflected diffuser screen, a high-speed light field projector, and the user tracking and interaction components. A rear-projection light propagation is specially designed to reconstruct the light field. By calibrating this levitated light field to the physical dimension, and capturing user gestures, we enable multiple users mid-air interactions based on their virtual measurement perception.
References:
[1]
Bayer, B. E. 1999. An optimum method for two-level rendition of continuous-tone pictures. SPIE MILESTONE SERIES MS 154, 139–143.
[2]
Butler, A., Hilliges, O., Izadi, S., Hodges, S., Molyneaux, D., Kim, D., and Kong, D. 2011. Vermeer: direct interaction with a 360 viewable 3d display. In Proceedings of the 24th annual ACM symposium on User interface software and technology, ACM, 569–576.
[3]
Inoue, T., and Takaki, Y. 2015. Table screen 360-degree holographic display using circular viewing-zone scanning. Optics Express 23, 5, 6533–6542.
[4]
Jones, A., Lang, M., Fyffe, G., Yu, X., Busch, J., Mc-Dowall, I., Bolas, M., and Debevec, P. 2009. Achieving eye contact in a one-to-many 3d video teleconferencing system. In ACM Transactions on Graphics (TOG), vol. 28, ACM, 64.
[5]
Su, C., Zhong, Q., Peng, Y., Xu, L., Wang, R., Li, H., and Liu, X. 2015. Grayscale performance enhancement for time-multiplexing light field rendering. Optics Express 23, 25, 32622–32632.
[6]
Xia, X., Liu, X., Li, H., Zheng, Z., Wang, H., Peng, Y., and Shen, W. 2013. A 360-degree floating 3d display based on light field regeneration. Optics express 21, 9, 11237–11247.
[7]
Yao, Y., Zhi, H., Bai, J., and Hou, X. Y. 2012. Design of a panoramic annular lens with a horizontal symmetric fov. In 6th International Symposium on Advanced Optical Manufacturing and Testing Technologies, SPIE, 841703–841703.
[8]
Yoshida, S. 2015. fvision: interactive glasses-free tabletop 3d images floated by conical screen and modular projector arrays. In SIGGRAPH Asia 2015 Emerging Technologies, ACM, 12.
[9]
Zhong, Q., Peng, Y., Li, H., Su, C., Shen, W., and Liu, X. 2013. Multiview and light-field reconstruction algorithms for 360-degree multiple-projector-type 3d display. Applied optics 52, 19, 4419–4425.
