“GaussBrush: Drawing with Magnetic Stylus”
Conference:
Experience Type(s):
Title:
- GaussBrush: Drawing with Magnetic Stylus
Description:

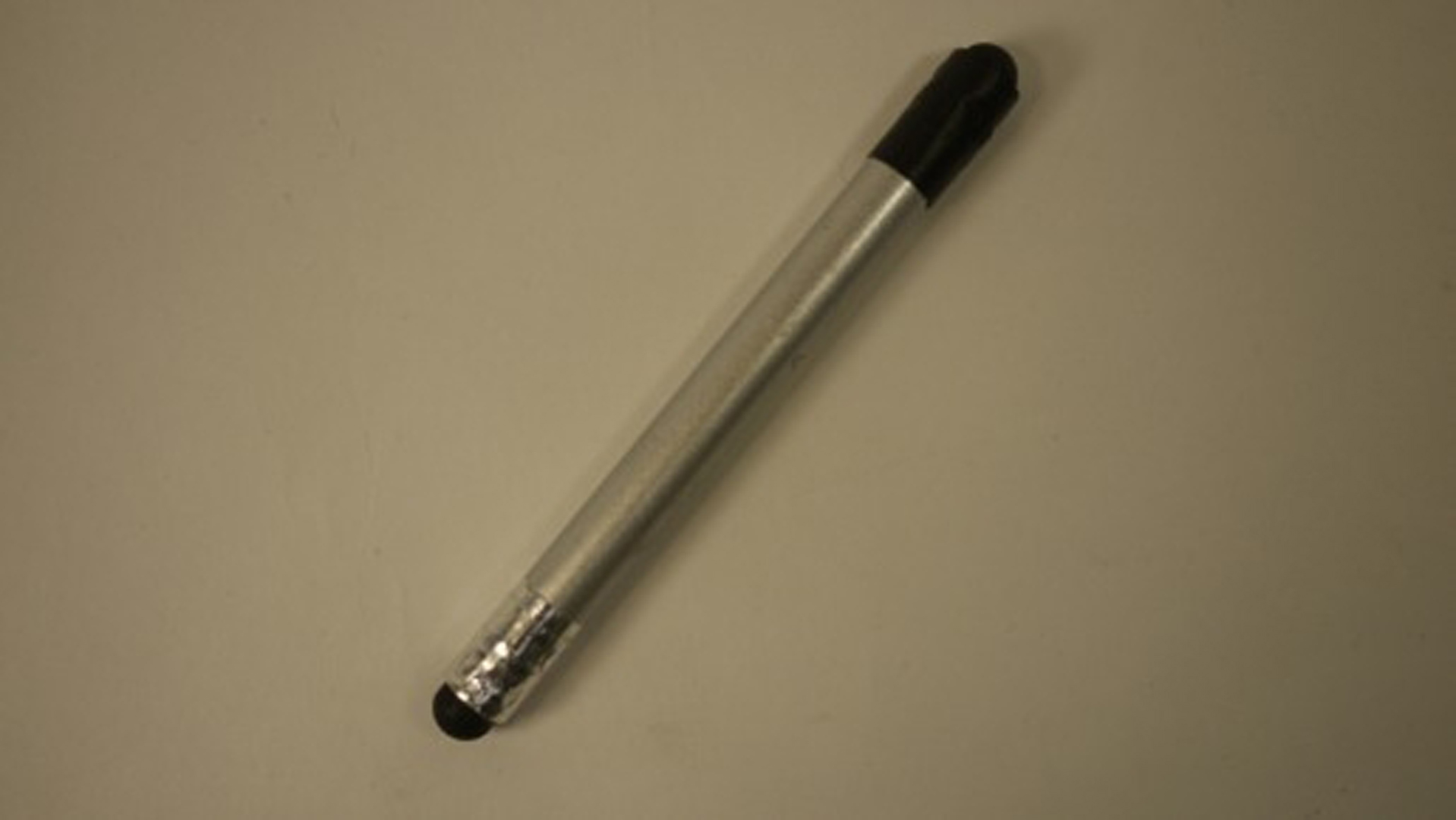

GaussBrush is a magnetic stylus based on GaussSense technology, which utilizes a thin magnetic sensor grid that can be directly attached to the back of the touchscreen device to enhance its stylus input capability. Utilize the enabled features such as discriminating the stylus events from the finger touch events, determining stylus tilt angle and stylus tip’s pressure, and locating the position above where the stylus hovers, more natural sketching experiences are provided. In the demonstrated drawing application, a user can use a GaussBrush to draw a stylized stroke by tilting it or stressing the its tip with different levels, use another side of the stylus to erase unwanted strokes, or hover the stylus at a boundary of the display to access an off-screen color swatch from which a new color can be selected. While drawing, the user still can use finger gestures to pan and zoom the canvas. The combination of GaussBrush and GaussSense extends the design space of Pen+Touch interaction.
References:
[1]
Bi, X., Moscovich, T., Ramos, G., Balakrishnan, R., and Hinckley, K. 2008. An exploration of pen rolling for pen-based interaction. In Proc. ACM UIST 2008, 191–200.
[2]
Grossman, T., Hinckley, K., Baudisch, P., Agrawala, M., and Balakrishnan, R. 2006. Hover widgets: using the tracking state to extend the capabilities of pen-operated devices. In Proc. ACM CHI 2006, 861–870.
[3]
Hinckley, K., Yatani, K., Pahud, M., Coddington, N., Rodenhouse, J., Wilson, A., Benko, H., and Buxton, B. 2010. Pen + touch = new tools. In Proc. ACM UIST 2010, 27–36.
[4]
Liang, R.-H., Cheng, K.-Y., Su, C.-H., Weng, C.-T., Chen, B.-Y., and Yang, D.-N. 2012. GaussSense: Attachable stylus sensing using magnetic sensor grid. In Proc. ACM UIST 2012.
[5]
Perski, H., and Morag, M., 2002. Dual function input device and method. U.S. Patent No. 6762752.
[6]
Ramos, G., Boulos, M., and Balakrishnan, R. 2004.
[7]
Tian, F., Xu, L., Wang, H., Zhang, X., Liu, Y., Setlur, V., and Dai, G. 2008. Tilt menu: using the 3D orientation information of pen devices to extend the selection capability of pen-based user interfaces. In Proc. ACM CHI 2008, 1371–1380.
[8]
Vogel, D., and Casiez, G. 2011. Conté: multimodal input inspired by an artist’s crayon. In Proc. ACM UIST 2011, 357–366.
[9]
Yu, N.-H., Chan, L.-W., Lau, S. Y., Tsai, S.-S., Hsiao, I.-C., Tsai, D.-J., Hsiao, F.-I., Cheng, L.-P., Chen, M., Huang, P., and Hung, Y.-P. 2011. TUIC: enabling tangible interaction on capacitive multi-touch displays. In Proc. ACM CHI 2011, 2995–3004.
