“The Method of Moving Frames for Surface Global Parametrization”
Conference:
Type(s):
Title:
- The Method of Moving Frames for Surface Global Parametrization
Presenter(s)/Author(s):
Abstract:

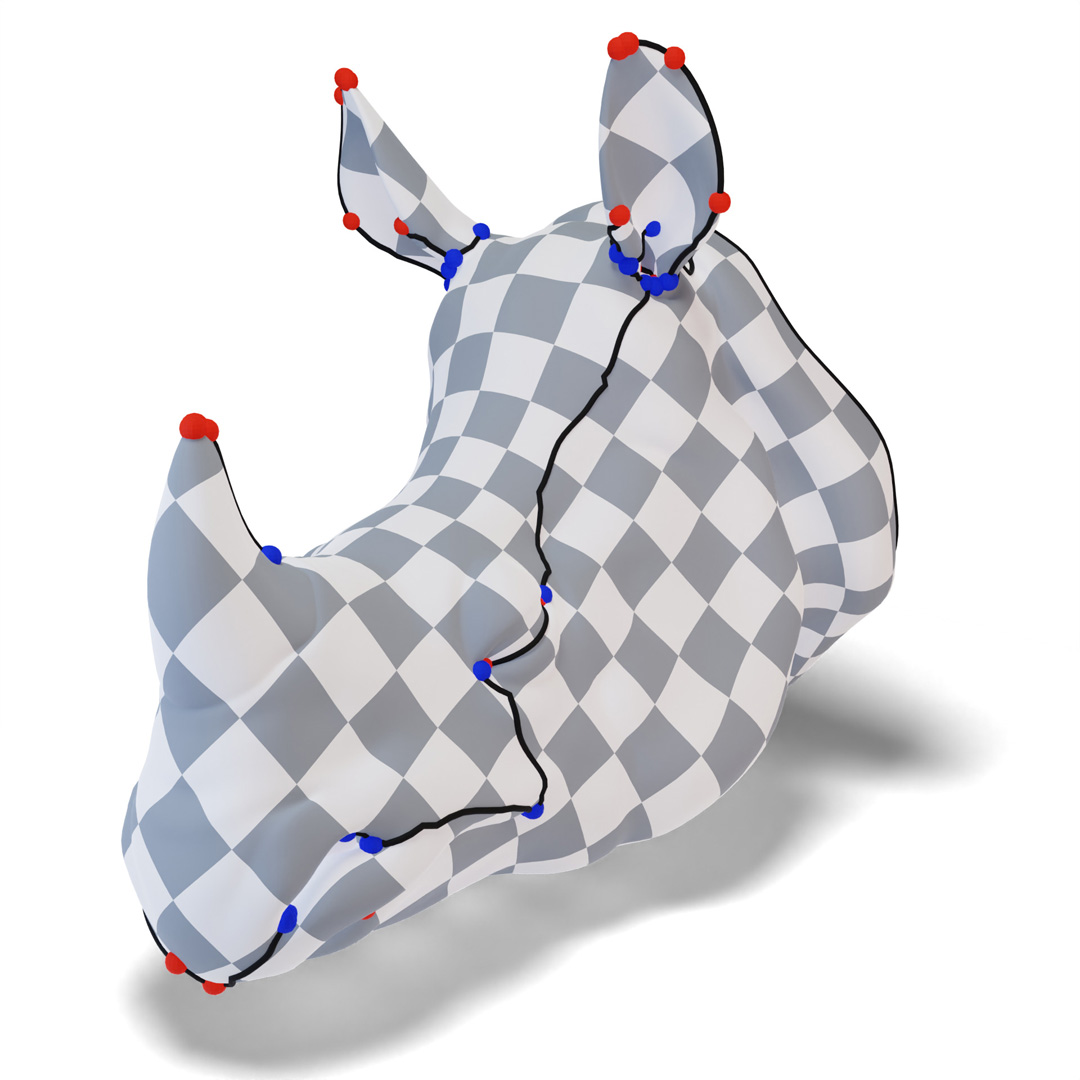

We introduce a surface parametrization algorithm supporting seamless constraints and feature alignment based on Cartan?s method of moving frames. Using a discretization of Cartan?s structure equations, we derive a non-linear least-square problem which optimizes both singularity positions and uv-coordinates simultaneously in order to minimize any provided distortion function.
