“Singular Foliations for Knit Graph Design”
Conference:
Type(s):
Title:
- Singular Foliations for Knit Graph Design
Presenter(s)/Author(s):
Abstract:

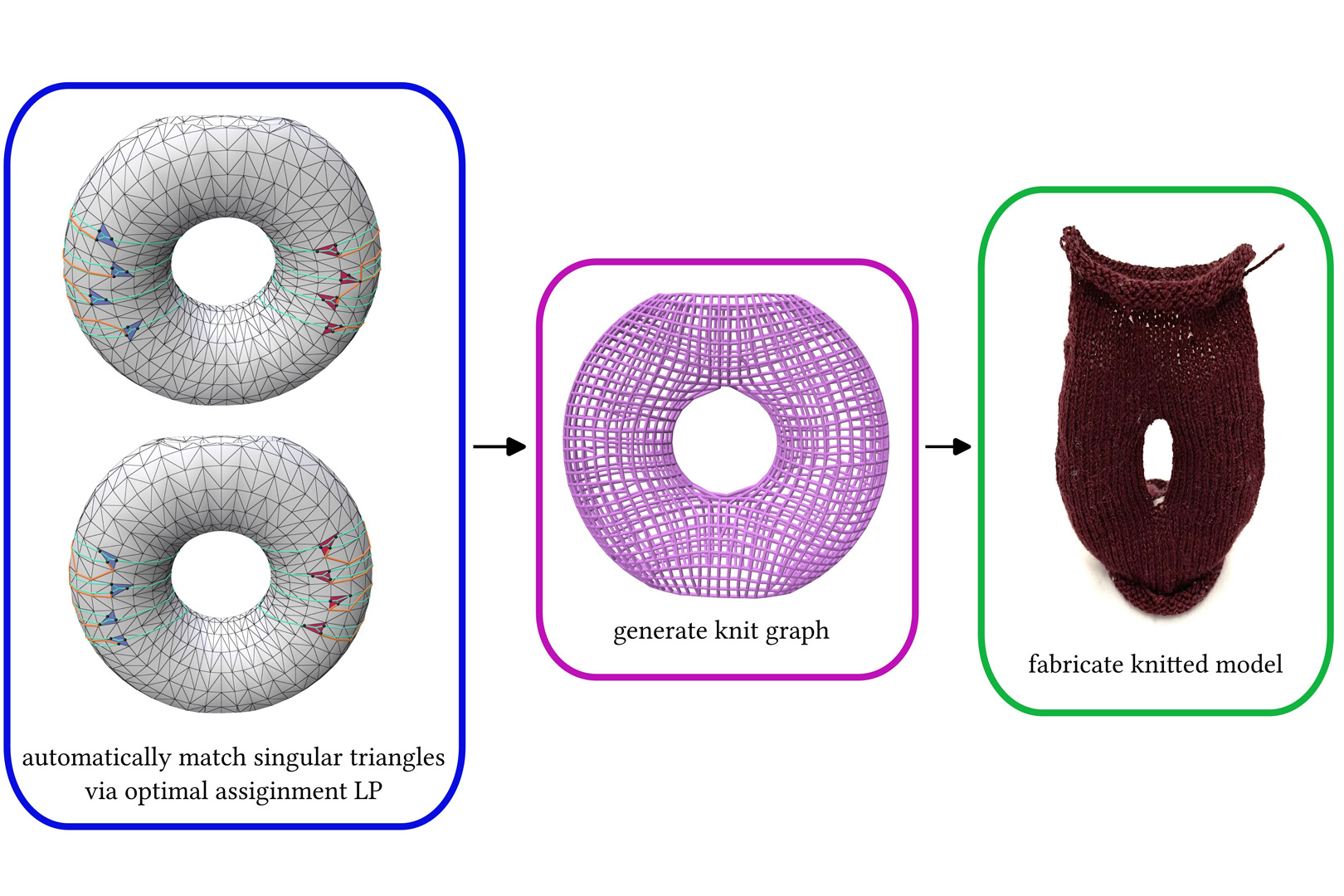

We build a knit planning framework based on stripe patterns viewed as singular foliations. This perspective allows precise control of striping level sets and automatic singularity matching, preventing any helicing of course rows, a challenging problem for knit graph creation. Our framework also handles models with genus and multiple boundaries.
