“PickHits: Hitting Experience Generation With Throwing Motion via a Handheld Mechanical Device” by Maekawa, Matsubara, Hiyama and Inami
Conference:
Experience Type(s):
Title:
- PickHits: Hitting Experience Generation With Throwing Motion via a Handheld Mechanical Device
Program Title:
- New Technologies Research & Education Adaptive Technology
Organizer(s)/Presenter(s):
Description:
We developed a prototype system to explore the interaction between a human and computational system in throwing motion. We designed a mechanical handheld device, and the release timing of the throwing motion is controlled computationally. Our system provides users with a new hitting experience.

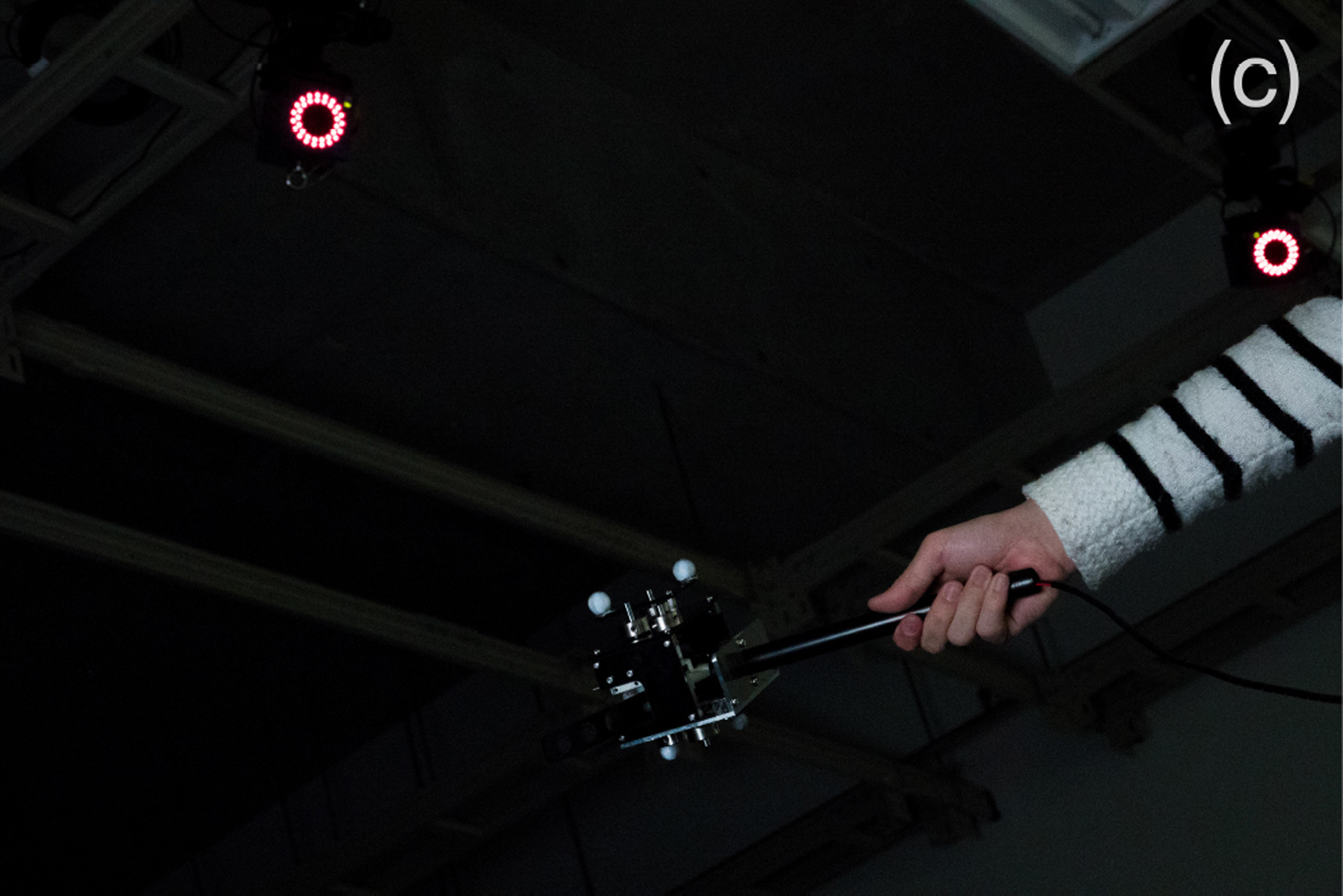

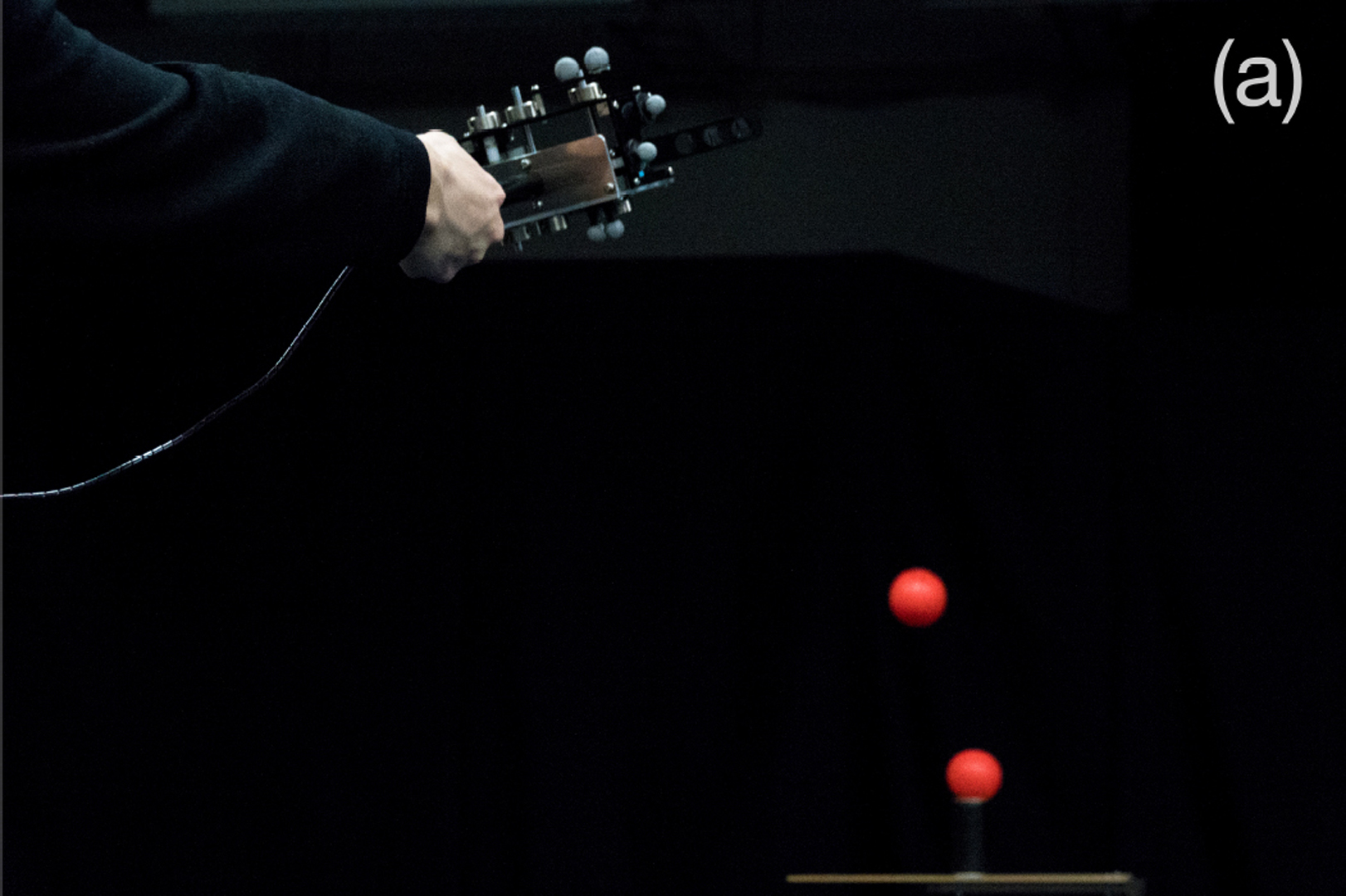

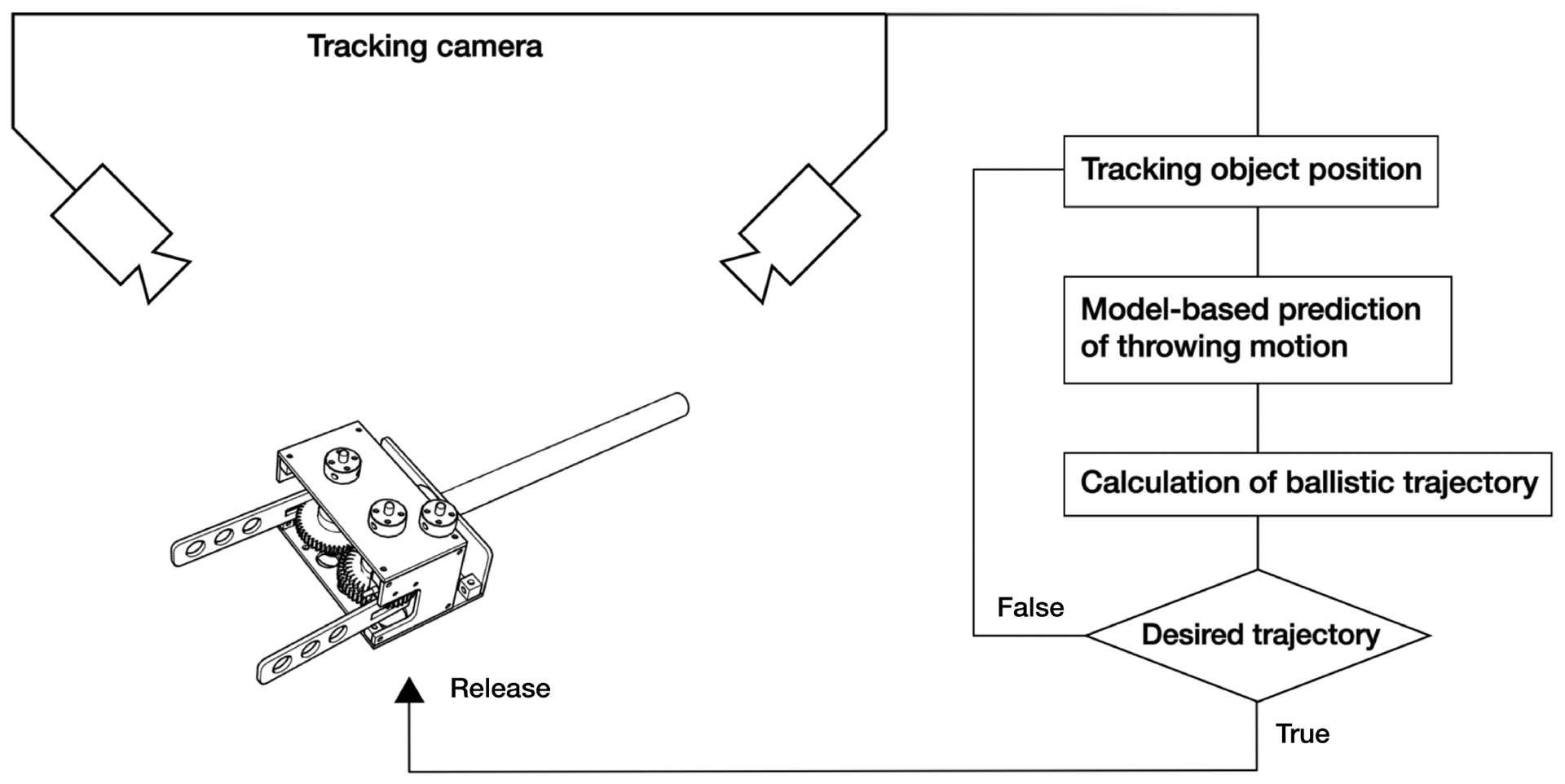

Experiences of hitting targets cause a great feeling. We propose a system for generating this experience computationally. This system consists of external tracking cameras and a handheld device for holding and releasing a thrown object. As a proof-of-concept system, we developed the system based on two key elements: low-latency release device and constant model-based prediction. During the user’s throwing motion, the ballistic trajectory of the thrown object is predicted in real time, and when the trajectory coincides with the desired one, the object is released. We found that we can generate a computational hitting experience within a limited range space.
References:
[1] Yuta Itoh, Jason Orlosky, Kiyoshi Kiyokawa, and Gudrun Klinker. 2016. Laplacian vision: Augmenting motion prediction via optical see-through head-mounted displays. In Proceedings of the 7th Augmented Human International Conference 2016. ACM, 16.
[2] Takuya Nojima, Dairoku Sekiguchi, Masahiko Inami, and Susumu Tachi. 2002. The SmartTool: A system for augmented reality of haptics. In Virtual Reality, 2002. Proceedings. IEEE. IEEE, 67–72.
Additional Images:
-
- 2019 ETech Maekawa: PickHits: Hitting Experience Generation with Throwing Motion via a Handheld Mechanical Device
-
- 2019 ETech Maekawa: PickHits: Hitting Experience Generation with Throwing Motion via a Handheld Mechanical Device
