“FacePush: Experiencing Pressure Forces on Face with HMDs”
Conference:
Experience Type(s):
Title:
- FacePush: Experiencing Pressure Forces on Face with HMDs
Organizer(s)/Presenter(s):
Description:
Attendee interacts with FacePush system through two applications. She/he stands at the center of our floor plan and starts experiencing our game with haptic feedback provided by FacePush. Attendee has to wear wrist straps on both hands in the second application.

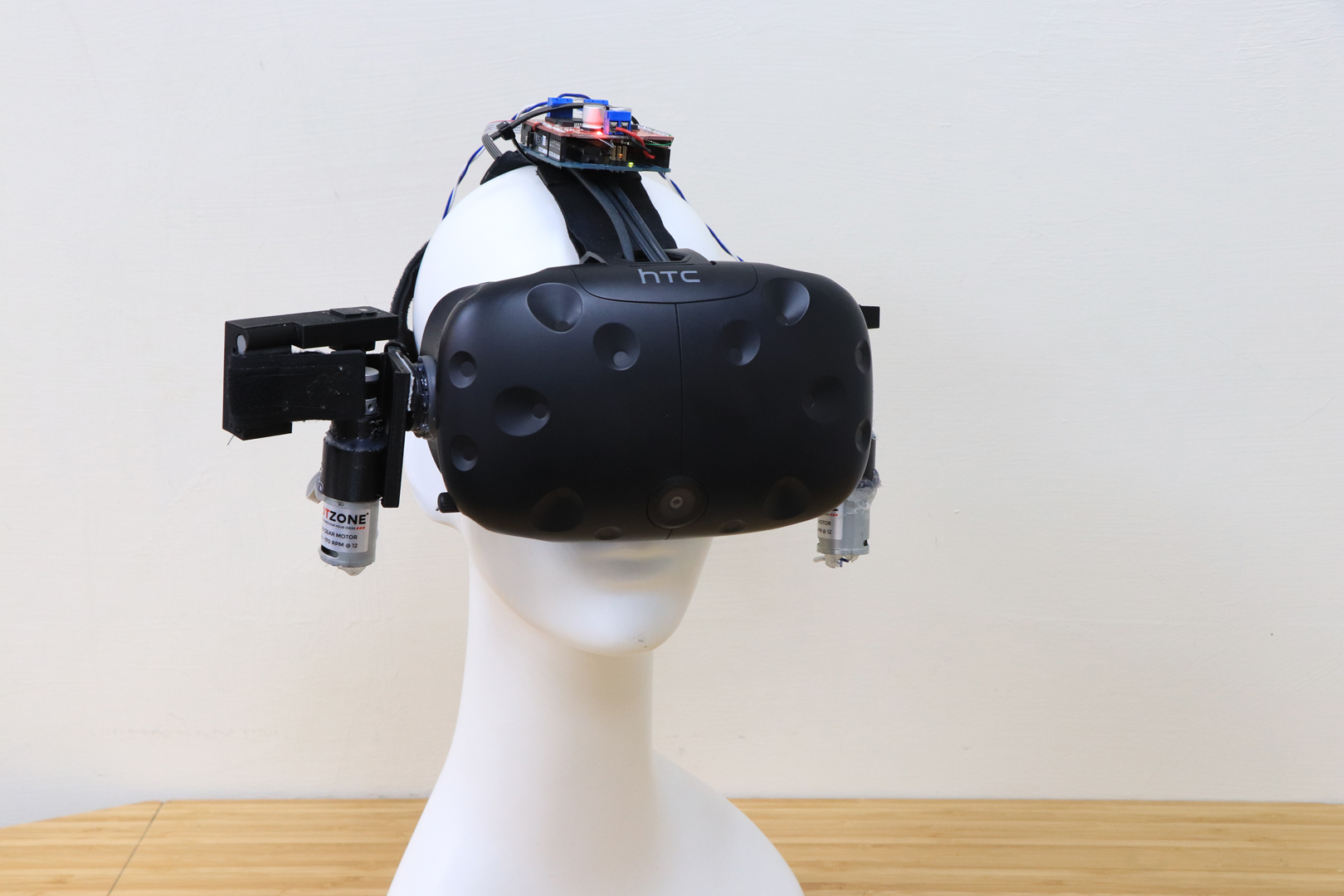

Simulated haptics is a key component to enhance immersion in virtual environments. Previous research has proposed various mechanisms to generate different haptic feedbacks. While many were deployed on limbs e.g., through wearable interfaces or handheld controllers, recent researches started to explore displaying haptics directly through HMDs. Examples include thermal [Peiris et al. 2017], vibrotactile [de Jesus Oliveira et al. 2017] and force [Gugenheimer et al. 2016] feedbacks. We present FacePush, a pulley system incorporated with a HMD to display pressure forces on user face. Unlike GyroVR [Gugenheimer et al. 2016] which enabled tangential/rotational force on user head, FacePush’s pulley system creates normal force on the face region covered by the HMD. The main concept of FacePush is shifting torque provided by the two motors to a normal force pushing on face. As displayed in Figure 1. This normal force triggered by the motors pushes the HMD into user face resulting in pressure feedbacks on the face.
References:
[1]
V. A. de Jesus Oliveira, L. Brayda, L. Nedel, and A. Maciel. 2017. Experiencing guidance in 3D spaces with a vibrotactile head-mounted display. In Proc. of IEEE’17 VR.
[2]
Jan Gugenheimer, Dennis Wolf, Eythor R. Eiriksson, Pattie Maes, and Enrico Rukzio. 2016. GyroVR: Simulating Inertia in Virtual Reality Using Head Worn Flywheels. In Proc. of UIST ’16. ACM, New York, NY, USA.
[3]
Roshan Lalintha Peiris, Wei Peng, Zikun Chen, Liwei Chan, and Kouta Minamizawa. 2017. ThermoVR: Exploring Integrated Thermal Haptic Feedback with Head Mounted Displays. In Proc. of CHI ’17. ACM, New York, NY, USA.
